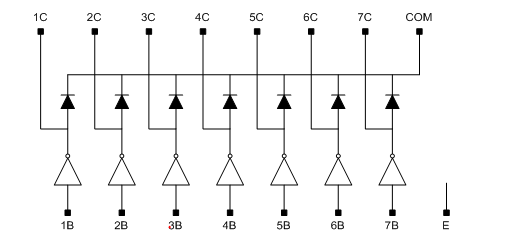

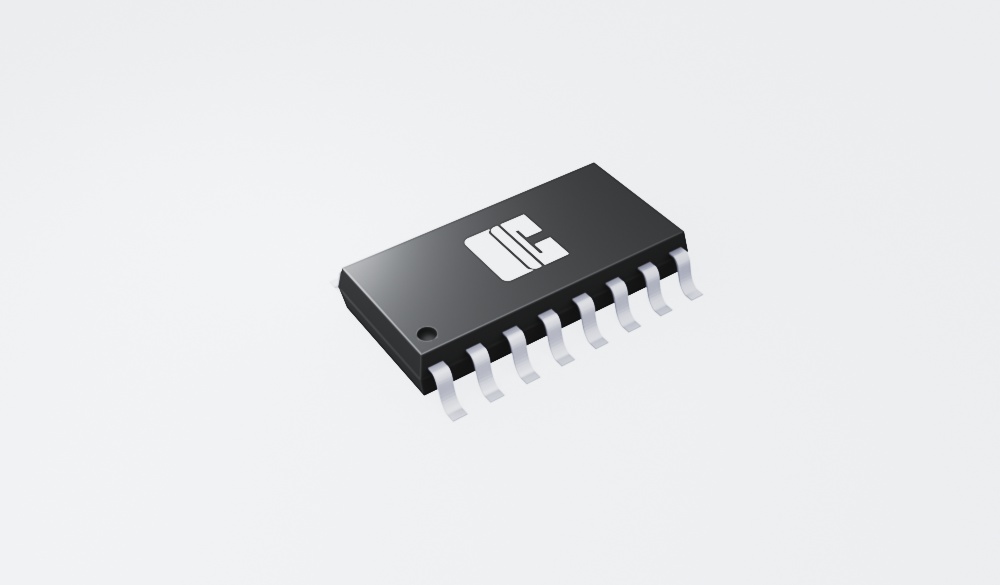

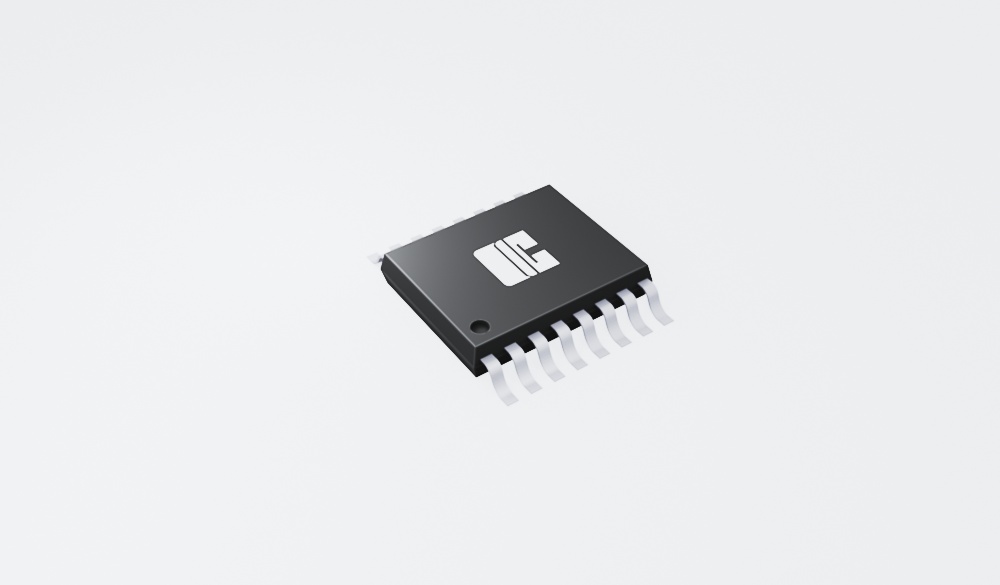

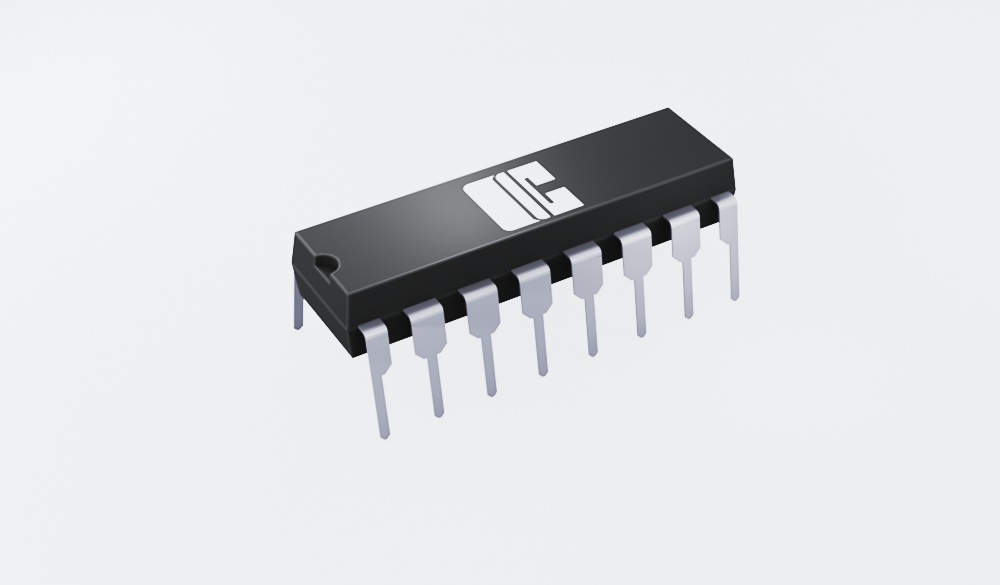

AiP2003 is high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. These versatile devices are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, stepper motor drive and high power buffers. Each channel rated at 500mA,The Darlington tube can be connected in parallel to achieve higher output current capability. Each Darlington tube in AiP2003 is connected with a 2.7K base resistance in series. It can be directly connected with TTL/CMOS circuit at 5V working voltage, and can directly process data that originally required standard logic buffer to process.
